Model TRA-0750 · 3/4" stainless tension rod assembly · Made in the USA

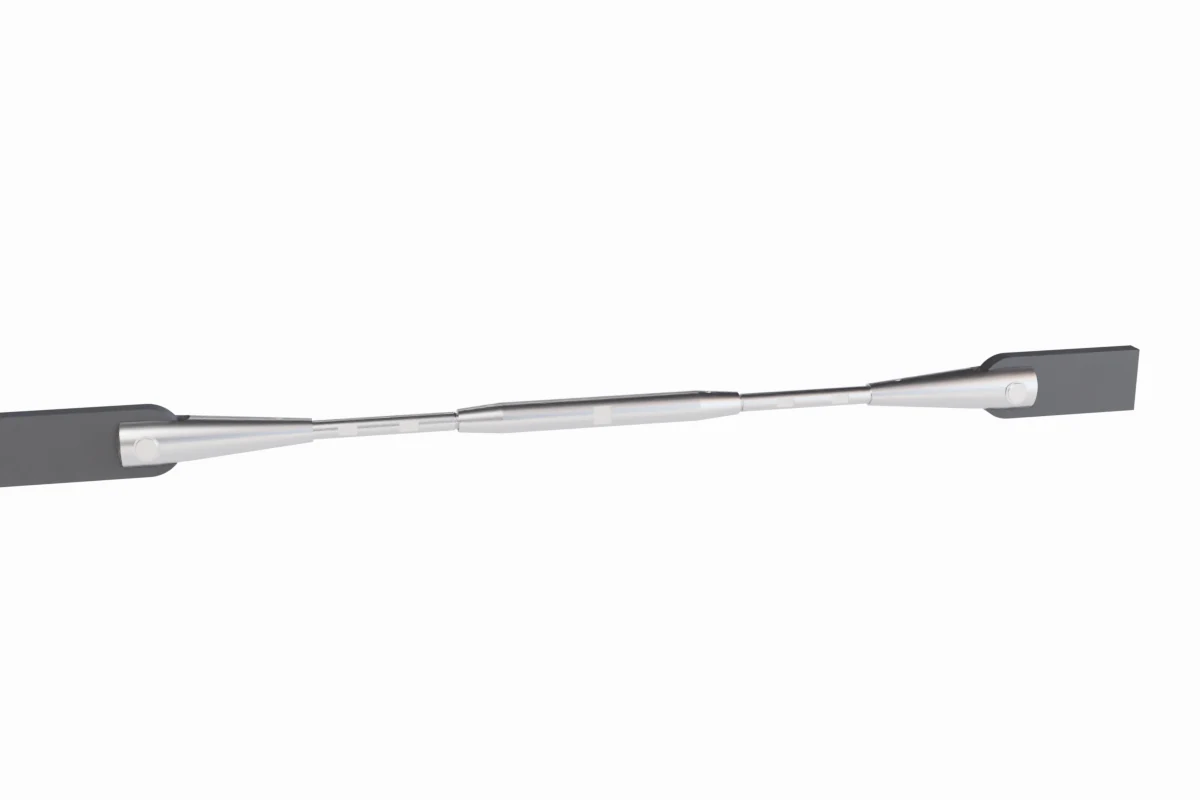

Design your stainless tension rods
Set the pin-to-pin length, then choose a turnbuckle and conical nuts. The capacities are the same either way.
Specifications
| Model | TRA-0750-174-T with the turnbuckle, TRA-0750-174-NT without |
|---|---|
| Material | ASTM A564 17-4 PH stainless steel (S17400), H1150 condition: clevises, clevis pins, rods and turnbuckle. 105 ksi minimum yield strength, 16% minimum elongation |
| Mill test reports | With every order, for each heat of steel in it, showing where it was melted |
| Quality system | Threaded, assembled and inspected in our Santa Anna, Texas, shop, under a quality management system certified to ISO 9001:2015 |
| Rod | 3/4" with 3/4-10 UNC threads, right-hand and left-hand; up to 20 ft per rod |
| Clevis pin | 7/8" diameter, held by two stainless retaining rings |
| Turnbuckle | 1-1/4" diameter, 8-1/4" long, with 1" wrench flats: just 1/8" proud of the rod across the flats, 1/4" at its widest |
| LRFD design strength | 33.86 kips |
| ASD allowable strength | 22.58 kips |
| Governing limit state | Net-section tensile rupture of the rod at the 3/4-10 thread (ANSI/AISC 370-21) |
| Length adjustment | 3" at the clevises, plus 6" at the turnbuckle: 9" in all with it, 3" without |
| Thread engagement | 1" minimum at every joint, marked on the rod so the installer can check it |
| Conical nuts | Optional and decorative, outside the load path |
| Mounting | Pinned to a plate your engineer designs to our grip plate requirements: 7/8" pin, 3/4" bearing thickness |
In the box
- Two clevises, one left-hand and one right-hand
- Two 7/8" clevis pins with four retaining rings
- The rod, cut to your length; or two rods and the turnbuckle
- Conical nuts if you choose them: two, or four with the turnbuckle
To order
Give us the pin-to-pin length and the quantity for each run. The grip plates at each end are by others, designed by your project's engineer.
Limits
- Static axial tension only. Bending, prying, eccentric or side loading isn't covered unless a licensed engineer evaluates it.
- Dynamic, cyclic, seismic or impact loads must be converted to an equivalent static load by your engineer.
- For dry and damp interiors and normal outdoor exposure. Marine, chloride-rich or chemically aggressive settings need your engineer's evaluation.
- Installed only as drawn, with Loctite 243 on the rod threads. No machining, welding, drilling or heating, and no other pins or mountings.
Reserve from the first production run
The first run is planned for spring 2027, and there's nothing to pay to reserve. We'll call to confirm your project, then quote with first-run pricing. Stamped drawings for a named project are on request.
